SHT-II - TechSystems

SHT-II
Light source: Visible laser 650nm
Error rate: 1/50,000,000
Safety: According to national laser safety standard Class2

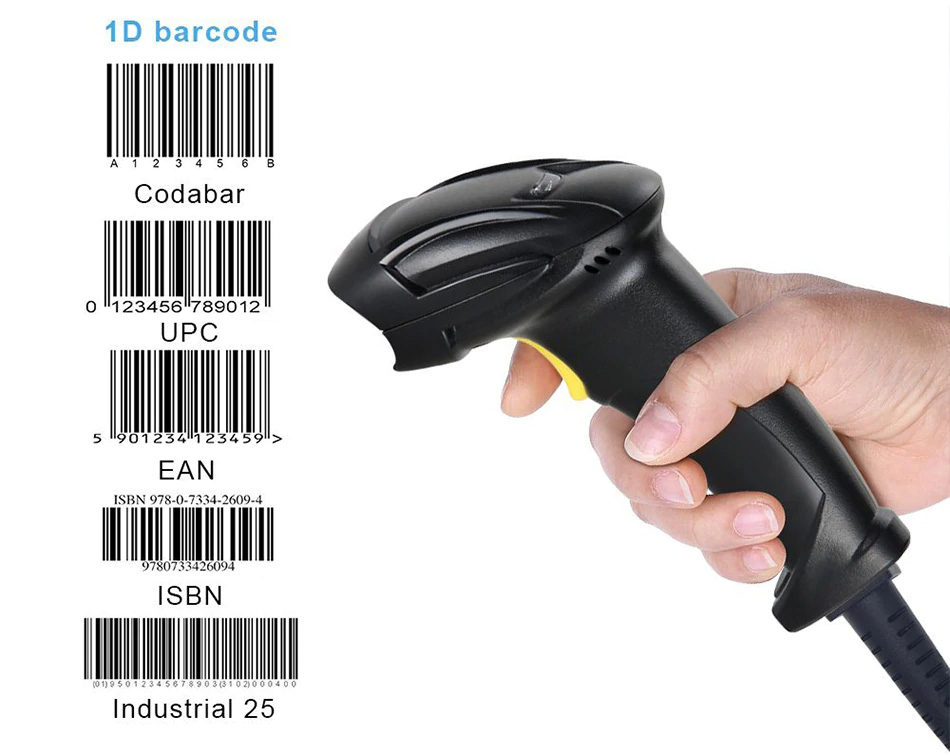

Barcode type: 1D barcode like UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code128, Code 93, Code 11, MSI/PIESSEY, UK/PLESSEY, UCC/EAN128 code, etc.
Supported interface: Built-in PS/2 keyboard, RS-232 serial, Standard 2.0USB interface
Trigger mode: Trigger buttons; automatic successive scanning; automatic scintillation scanning
Detection distance: 25cm (250cm2) 20cm (100cm2) 5cm(small area)
Baud rate: RS232baudrate: 2400-38400
Scanning width: 60mm @ 30mm (from objects);98mm @ 100mm (from objects)
Depth of scanning field: 2~9cm(0.1mm bar width);3~40cm(0.3mm bar width)
Scanning speed: 150times/sec
Operating current: 50ma(operating mode); 30ma(standby mode); 100ma(maximum peak)
Quiescent current: 20mA
Shock resistance: Pass 1.5 free fall test
Electromagnetic interference: According to EN8001,Par1 standard
Dustproof waterproof: According to IEC529,IP42 standard
Scanner size: L*W*H: 167mm*65mm*97mm
Shell material: ABS+PVC+PC
